1 / 4Concept renderings. Exact capacity and construction are controlled by the Rev A technical specification.
AG-C36 · Class family
Class 36
Our broadest catalog-prevalence size, organized into two serviceable tiers.
Institutional project pricing is quote-based. Freight, taxes, installation, options, and volume terms are separate.
- Capacity
- 36 devices
- Tier layout
- 18 + 18
- Overall size
- 30 W × 30 D × 41 H in
- Device fit
- Up to 16-in screens
Built around the fleet
36 labeled bays. One calm routine.

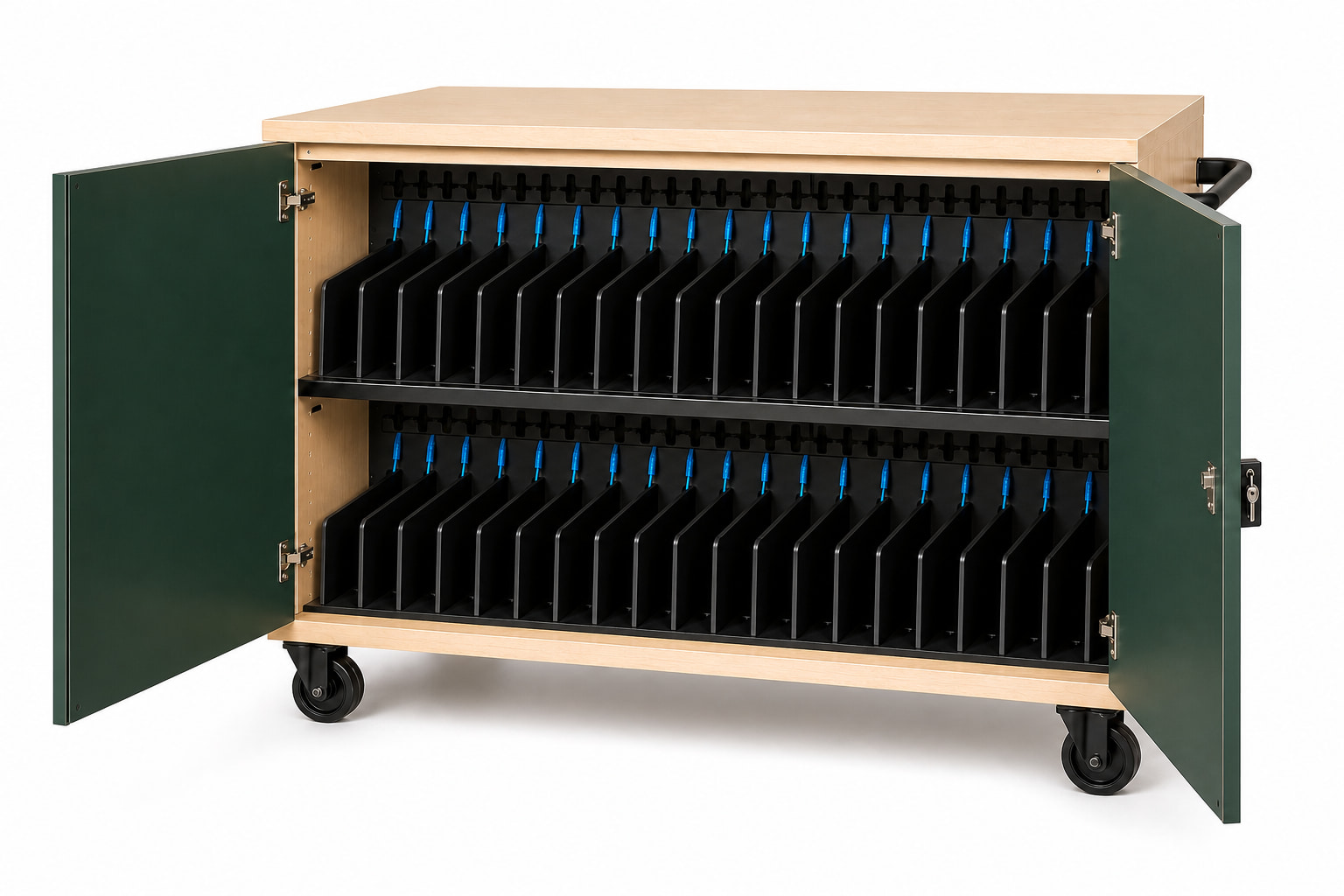

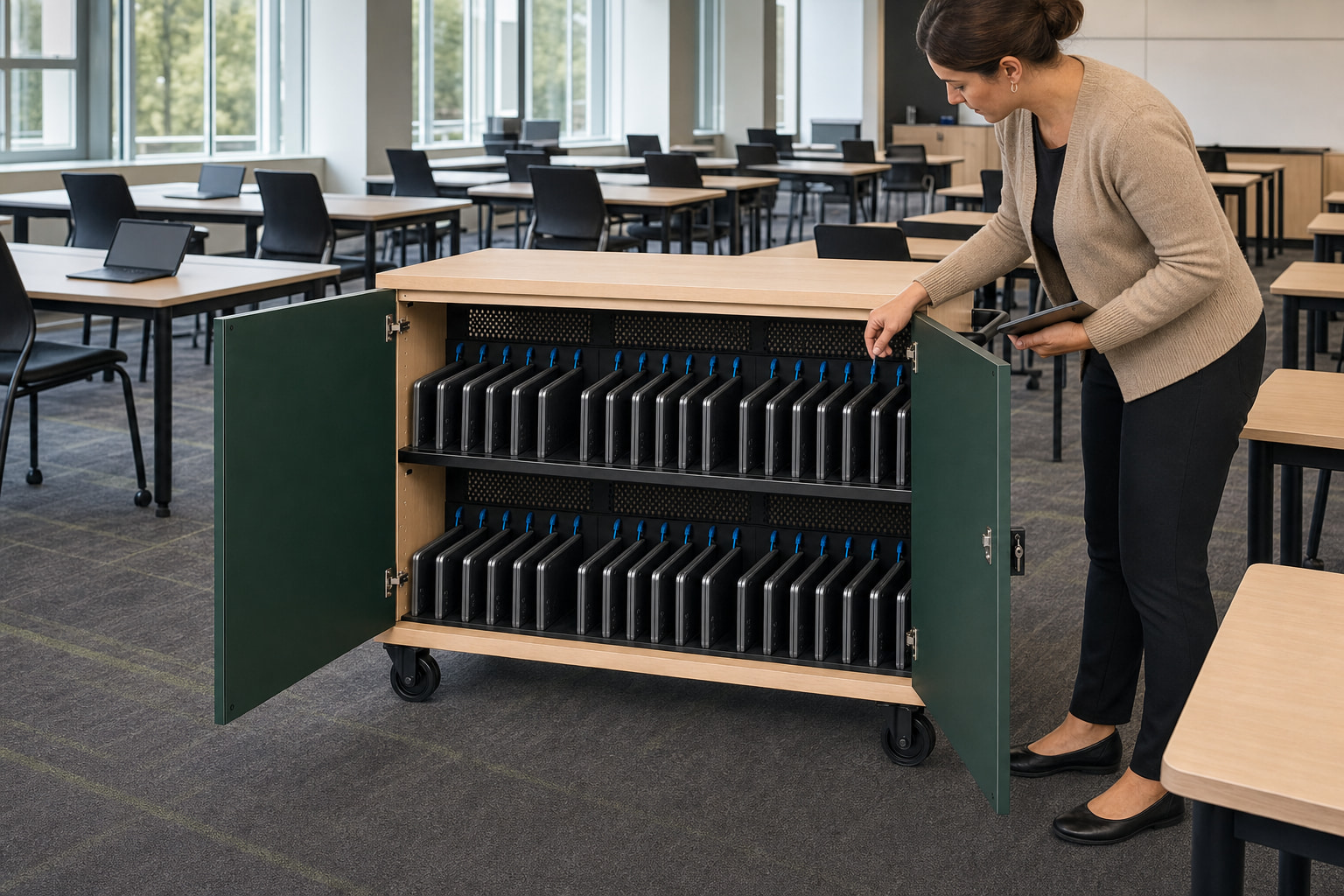

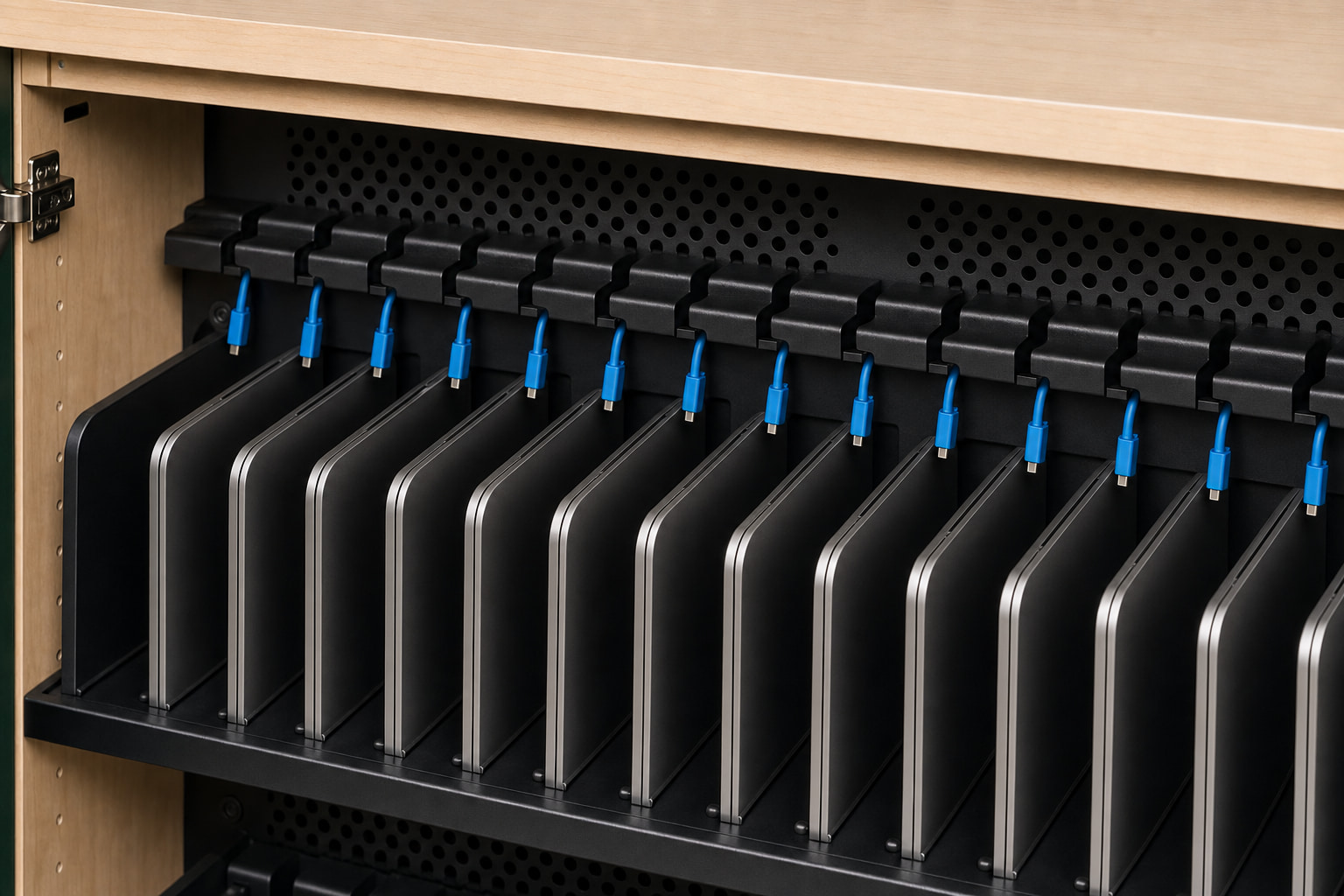

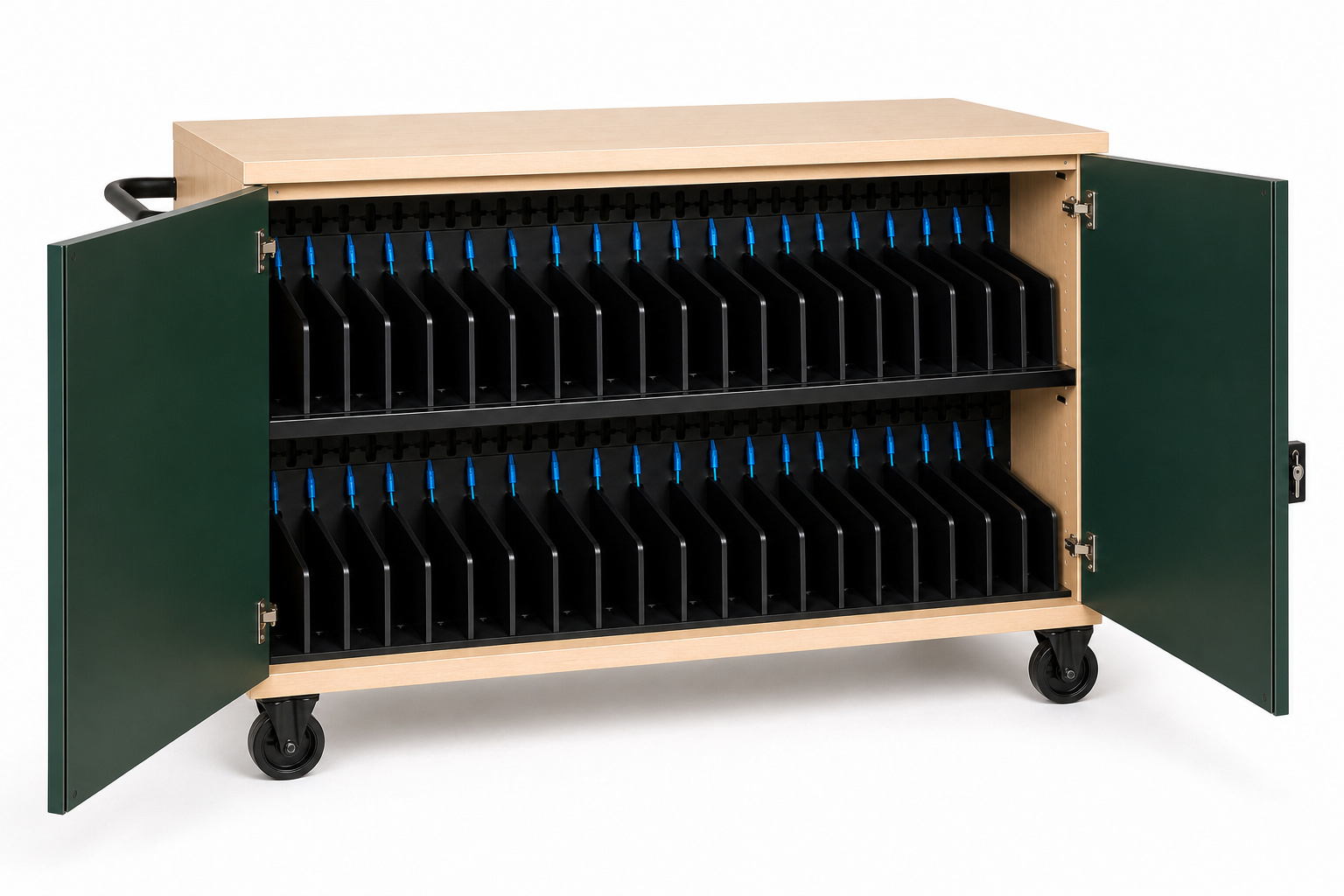

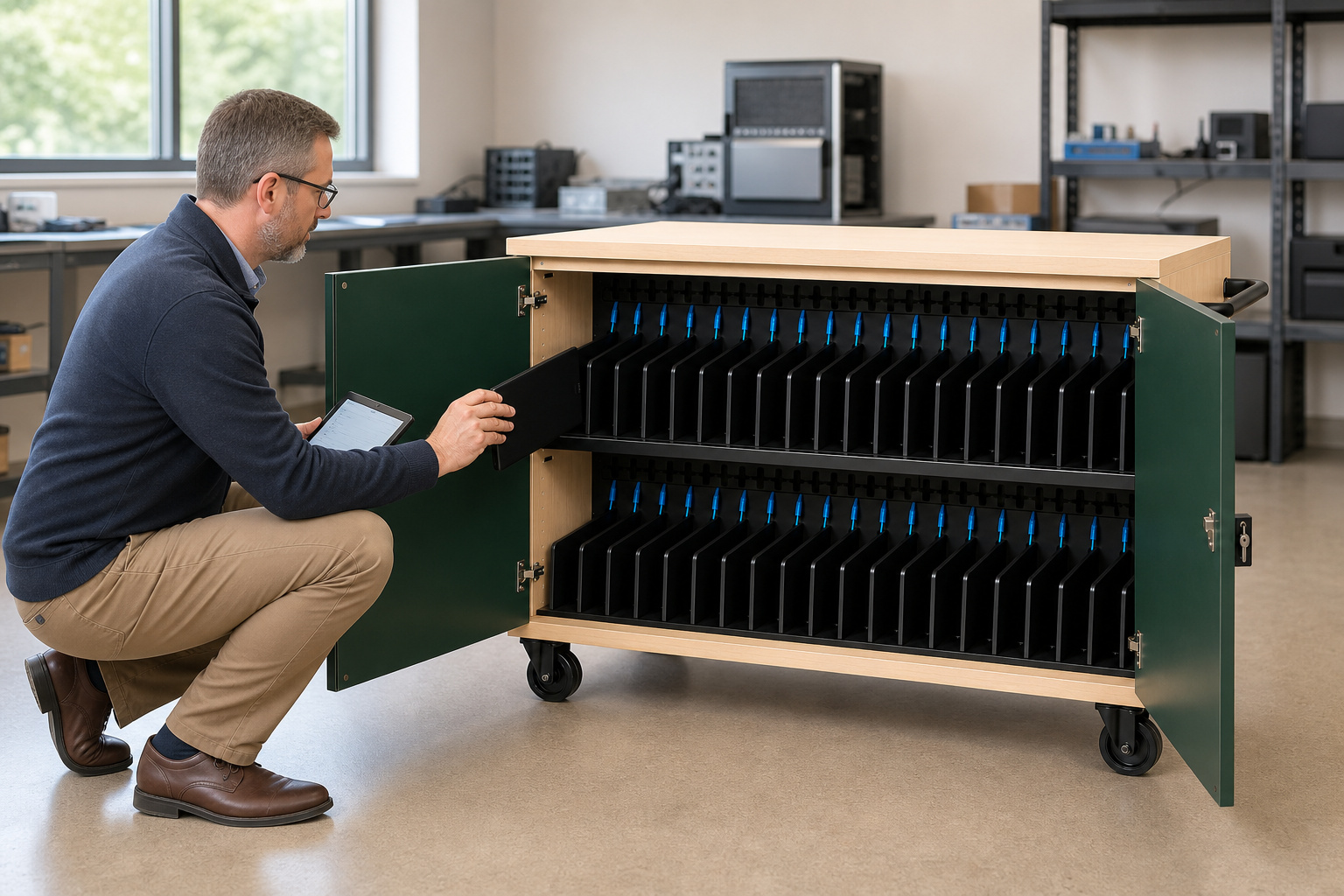

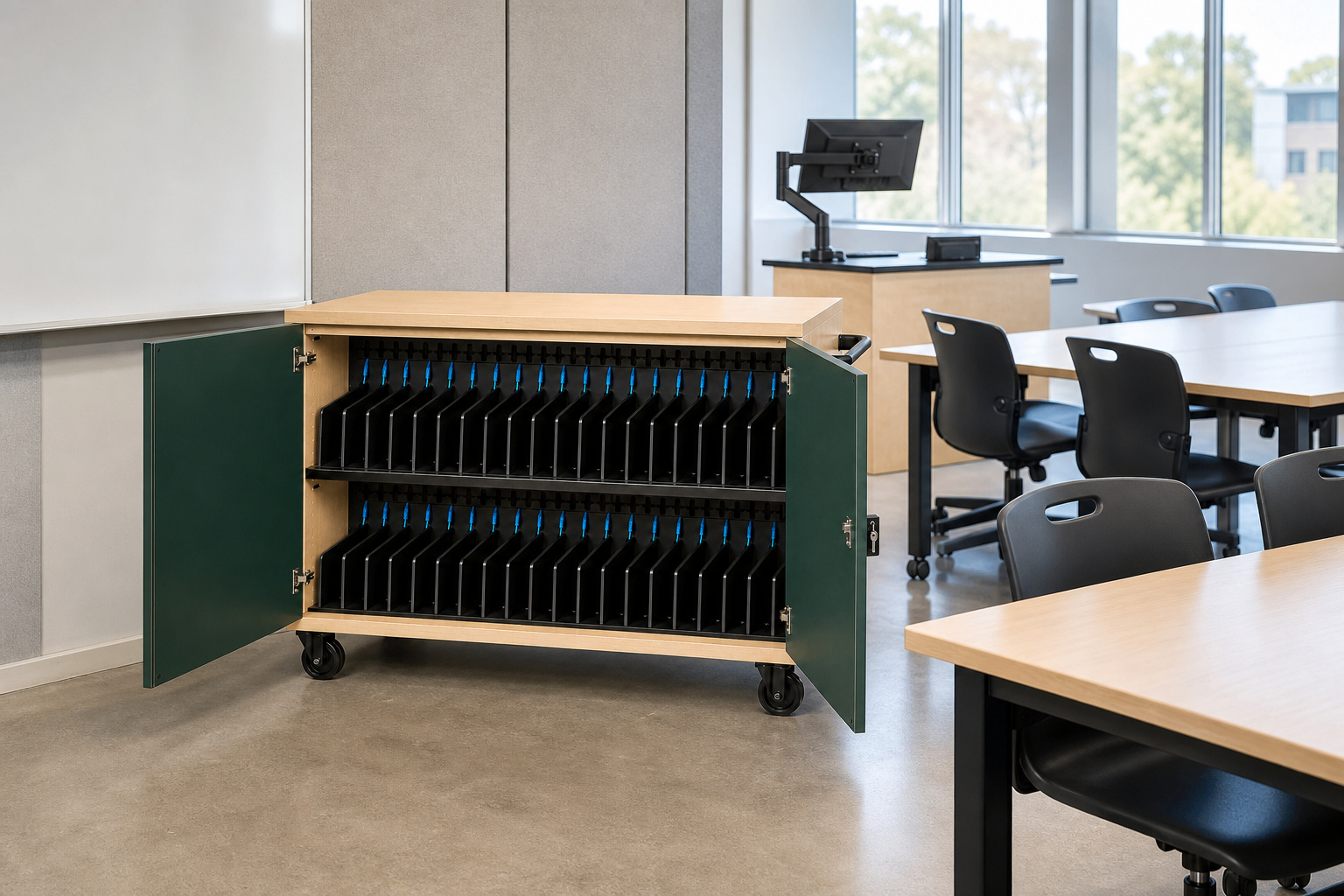

Large classrooms, district device programs, and shared campus fleets. Each bay receives an included, labeled USB-C lead; cabinet-level management allocates power across the fleet. Twin locking doors open 270 degrees for loading and service, while perforated steel shelves keep device weight and cable paths inside a replaceable metal system.
Fully assembled
Cabinet, casters, lock, cable set, and approved power package arrive integrated.
Serviceable by zones
18 + 18 power and cable zone(s), matched to the shelf layout.
Secure mobility

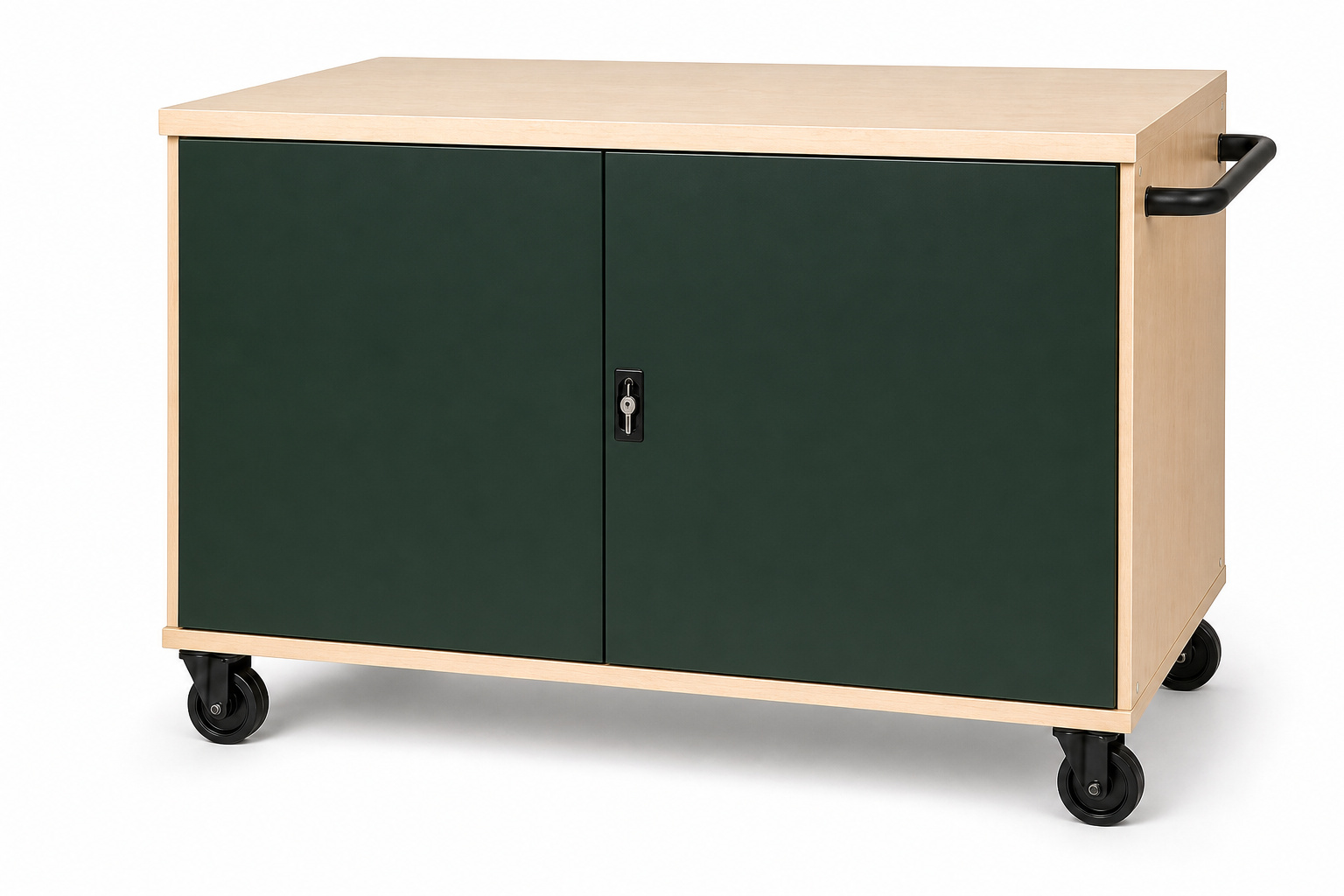

Three-point keyed lock, through-bolted handle, and four 5-inch casters.
Rev A specification
Planning dimensions and performance targets.
- SKU
- AG-C36
- Family
- Class
- Capacity
- 36 bays
- Tier layout
- 18 + 18
- Overall envelope
- 30 W × 30 D × 41 H in
- Cabinet depth
- 25.5 in
- Target slot width
- 1.3 in
- Maximum screen
- 16 in
- Nominal cabinet allocation
- 1200 W
- Per-port peak target
- 65 W
- Input target
- 120 VAC · 60 Hz · 12 A managed maximum
- Configuration
- Pre-wired USB-C PD · fully assembled
Certification gate
Final ratings, components, wiring, thermal limits, labels, and claims remain subject to qualified engineering and NRTL review. No UL, ETL, BIFMA, GREENGUARD, or medical-grade certification is claimed.
See the full safety approachAdd another size
Build a mixed-fleet project.
Compact, classroom, and high-density models share the same finish and operating logic.
Compare all models
